Pragmatic physically based rendering : Setup & Gamma
This blog post is a part of series about implementing PBR in WebGL from scratch:
Updates
2015/09/03 Removed gamma correction for input param colors and assuming they are in the linear space already
2015/09/22 Reversed back to gamma input colors based on the discussion here https://github.com/mrdoob/three.js/issues/5838
Setup
Before we start let's make sure we can get the code up and running properly. I will assume you have working knowledge of JavaScript and GLSL.
NodeJS
Hopefully you also used nodejs
and npm
(node package manager) before as we will use it quite a lot here. If you don't have nodejs
you should install it now from https://nodejs.org (this will also install npm
for you)
Browser & OS
I'm testing all the code in Safari 8.0.7 (as of time of writing this blog post) on OSX 10.10.4. Most of the code should work in any other major browser (Chrome 43+, Firefox 39+, Safari 8+) and operating system. There are some extensions missing in Safari and Firefox that we will use for specific tasks but I'll always give a warning about it in the related section of each post. Making it work on mobile is not a top priority at the moment but I'll test it as much as I can on the iOS. I don't have an Android device to test with unfortunately (bug fixes and pull requests are welcome!).
Getting the code
All the code and text for these tutorials lives at https://github.com/vorg/pragmatic-pbr. You can get it by downloading master.zip or via git
.
git clone https://github.com/vorg/pragmatic-pbr.git
Next let's enter the repo folder and install the dependencies.
cd pragmatic-pbr
npm install
Running the code
To make sure everything works run the following command while in pragmatic-pbr
directory.
beefy 201-init/main.js --open --live -- -i plask -g glslify-promise/transform

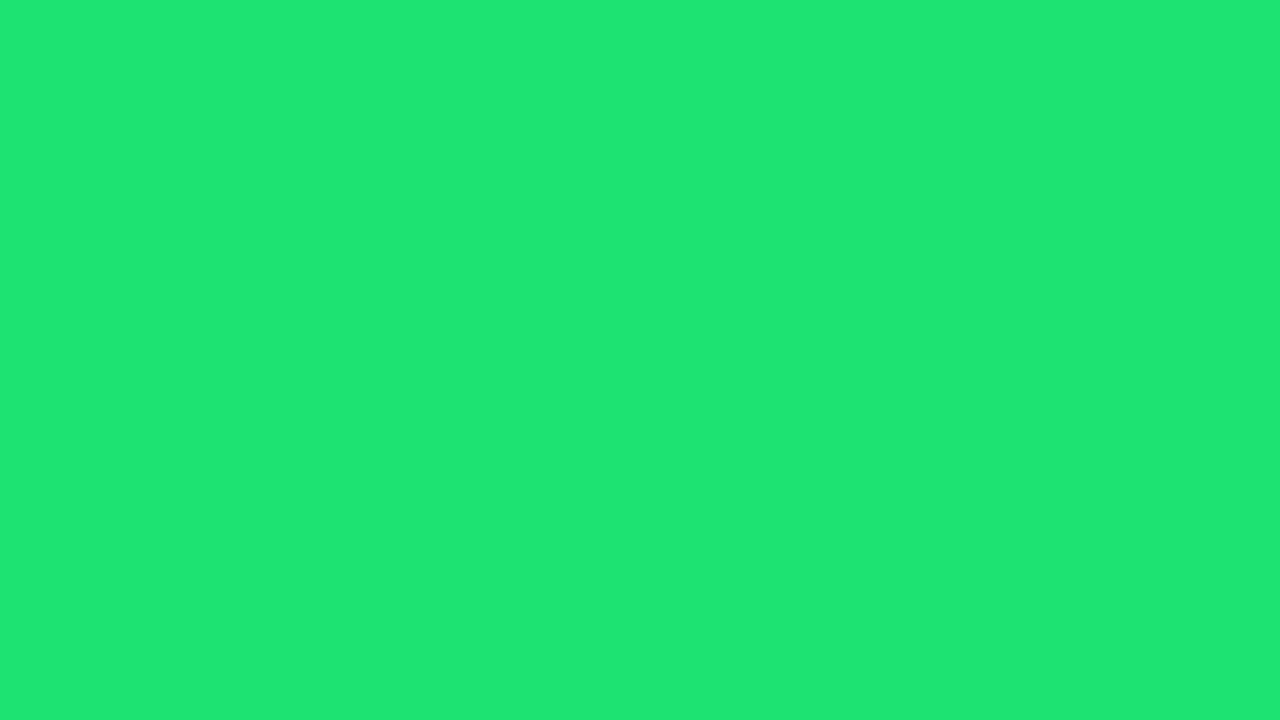

This should open your browser at http://127.0.0.1:9966 and display a rectangle that changes colors
click to see the live version in a separate window
What is beefy? Beefy is a local server that bundles our code and required node modules into one JS file using browserify that can be loaded by the browser. It also watches for changes (when run with --live
flag) and will reload the page when you edit and save the JS file. Running a local server also solves a number of issues with AJAX requests and local file access policies in the browsers. In the -- -i plask
part we have browserify
flags where we ignore plask
module and run our source code through glslify
transform that will inline all the GLSL shaders. Plask is a multimedia programming environment for OSX built on top of NodeJS and implementing WebGL v1.0+ spec. You can use it to run WebGL apps on OSX without the browser. I use it for development but we won't be using it in this tutorial.
Deploying the code
If you build on top of this tutorial and would like to have standalone (bundled) version that doesn't need beefy to run you can run the browserify
yourself:
browserify 201-init/main.js -i plask -g glslify-promise/transform -o 201-init/main.web.js
You will then need to add following 201-init/index.html
file:
Pragmatic PBR
Dependencies
Pex
When I said 'from scratch' I was relating to modern rendering and PBR specific techniques. We don't want to reinvent the wheel and implement things like texture loading and creating WebGL context. For these boring parts we will be using pex
. PEX is a WebGL library standing somewhere between stack.gl micromodules and monolithic three.js (although they started upgrading to a more modular code recently). This project is using next version of pex that's currently in development. There are numerous differences between this version and the one currently on npm:
- Moving away from proprietary Vec3, Mat4 etc in favor of arrays [x, y, z] etc. This allows better compatibility with existing npm modules and avoids marshalling (converting arrays to Vec3 etc) and simplifies serialization.
- Proper WebGL context abstraction with 1:1 wrappers for core WebGL objects (Texture, Framebuffer, VertexArray etc), state stack and extensions loading.
- Even bigger modularization (pex-glu -> pex-context, pex-cam, pex-geom -> pex-math, pex-geom, geom-subdivide). We are still in minimodules realm (multiple classes per module) with per class imports (pex-sys/Window) as we believe in API consistency. At the same time micromodules (single function, single class) are used whenever possible (e.g. is-browser, glsl-inverse)
- glslify for modular shader development
- New main contributor Henryk Wollik and therefore many cool ideas from foam-gl
As this version of pex is not on npm
yet (the beauty of always alpha software) so we will require it straight from the GitHub. This is not a problem for npm
. All we need to do is put the username (variablestudio is an org name for my studio variable.io before the package name in package.json where all the dependencies are specified and installed when calling npm install
.
"dependencies": {
"pex-cam": "variablestudio/pex-cam",
"pex-context": "variablestudio/pex-context",
"pex-io": "variablestudio/pex-io",
"pex-math": "variablestudio/pex-math",
"pex-sys": "variablestudio/pex-sys"
}
3rd party dependencies
We will use modules available on npm
whenever possible for both JavaScript (e.g re-map) and GLSL via glslify
(e.g. glsl-inverse)
Local dependencies
Recently I've started a new practice of extracting reusable code into micromodules as soon as possible in the project to prevent them from capturing too much context and becoming part of the spaghetti that every projects ends up in eventually (especially with last minute fixes). I put them in the local_modules
folder and require as usual:
var createCube = require('../local_modules/primitive-cube');
Most of them will eventually end up on npm
but I want to make sure the API is tested in practice so we avoid v0.0.0 zombie modules that are abandoned after the first push (npm
is full of them unfortunately).
201-init
This is just a quick test to make sure our setup works. The basic structure of a pex program is as follows (we will go into more details in the next section):
//imports
var Window = require('pex-sys/Window');
//Open window
Window.create({
settings: {
//initial window properties
},
resources: {
//optional resource files to load before init
},
init: function() {
//this code is executed after WebGL context creation
},
draw: function() {
//this code is executed every frame
}
})
So to make a window with background color changing every frame we would write:
var Window = require('pex-sys/Window');
var frame = 0;
Window.create({
settings: {
width: 1024,
height: 576
},
//skipping resources
//skipping init
draw: function() {
var ctx = this.getContext();
frame++;
var r = 0.5 + 0.5 * Math.sin(frame/10);
var g = 0.5 + 0.5 * Math.cos(frame/10 + Math.PI/2);
var b = 0.5 + 0.5 * Math.sin(frame/10 + Math.PI/4);
ctx.setClearColor(r, g, b, 1.0);
ctx.clear(ctx.COLOR_BIT);
}
})
202-lambert-diffuse
click to see the live version in a separate window

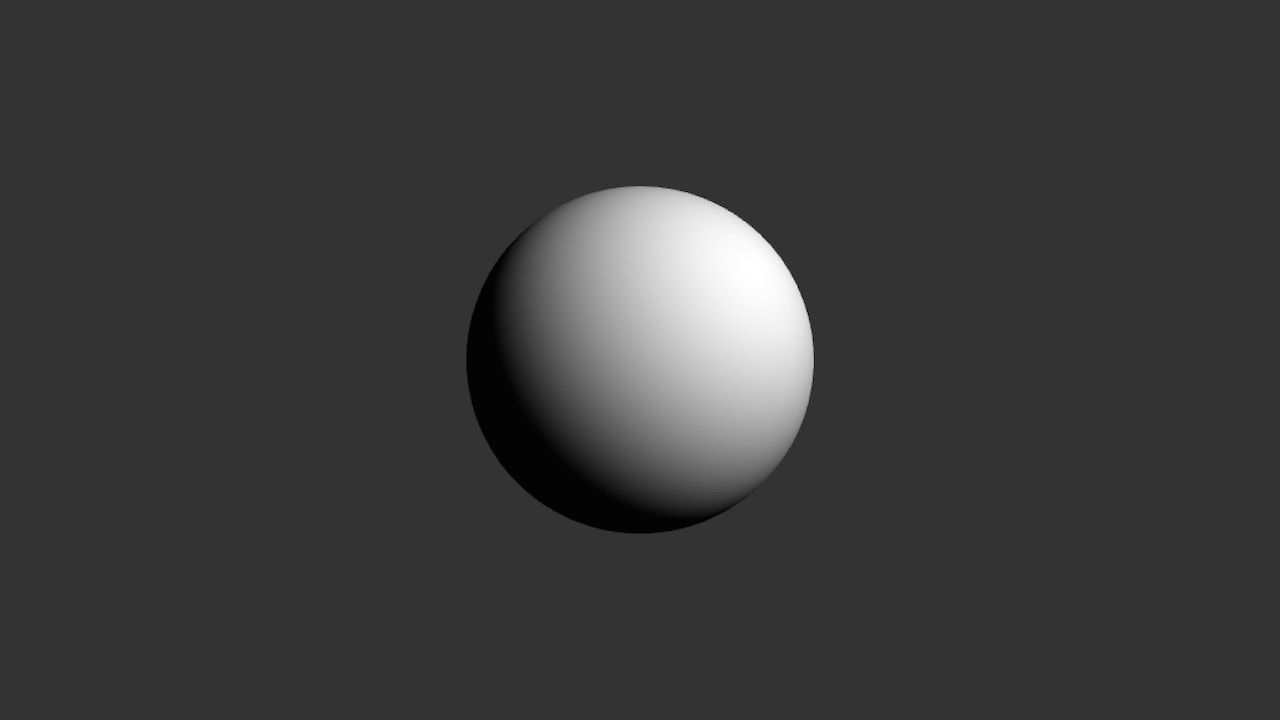

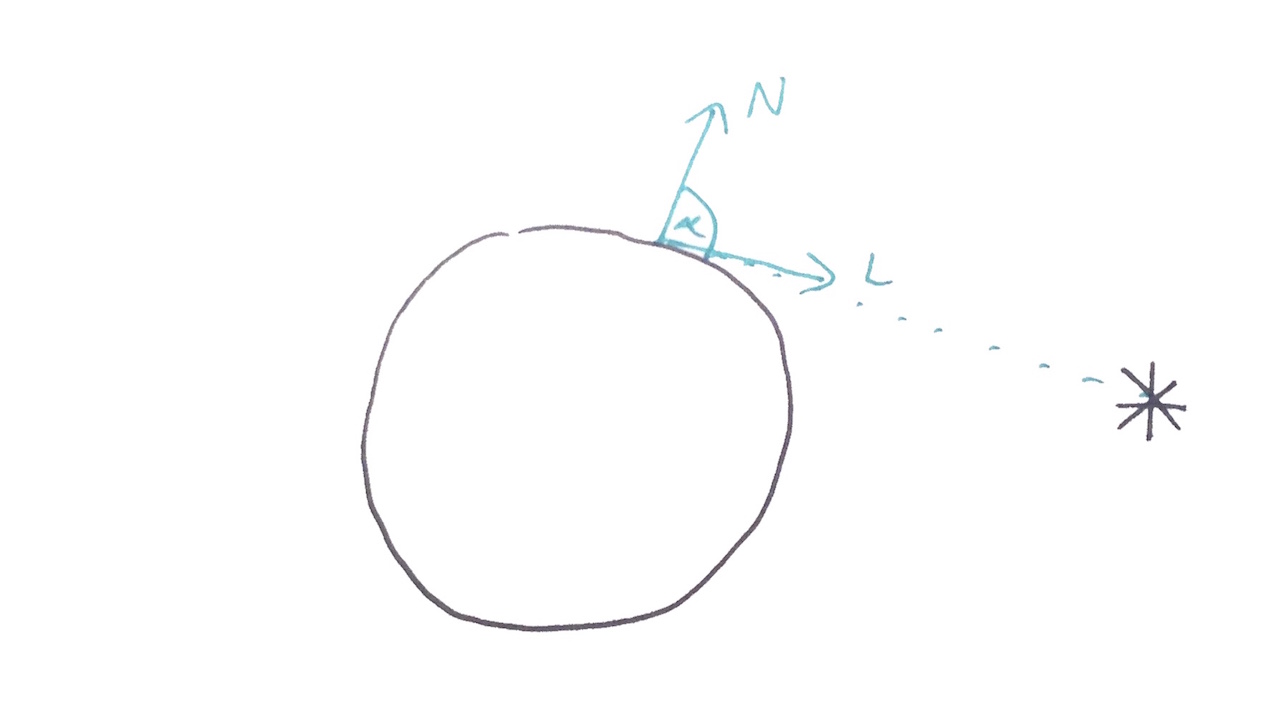

Let's start with a simple scene containing one sphere and a single point light. We will make a number of assumptions: the surface of the sphere is white, the light color is white and there is no light attenuation (light loosing intensity with distance) and the light's position is static (no animation) and located at [10,10,10]
(top right, in front of the sphere).
Diffuse Lighting
In order to calculate the appearance of a surface under these lighting conditions we need a lighting (shading) model. One of the simplest and most commonly used shading models is Lambertian reflectance also known as Lambert diffuse or just Lambert. It models a diffuse reflection (light reflecting into multiple directions -> blurry reflection) for matte / rough objects. It doesn't handle specular reflection (light reflecting into single direction causing -> sharp, mirror / highlight like) but we don't need that yet. Lambert diffuse obeys Lambert's cosine law stating that light intensity observed on the surface is proportional to the cosine of the angle between direction towards the light and the surface normal.

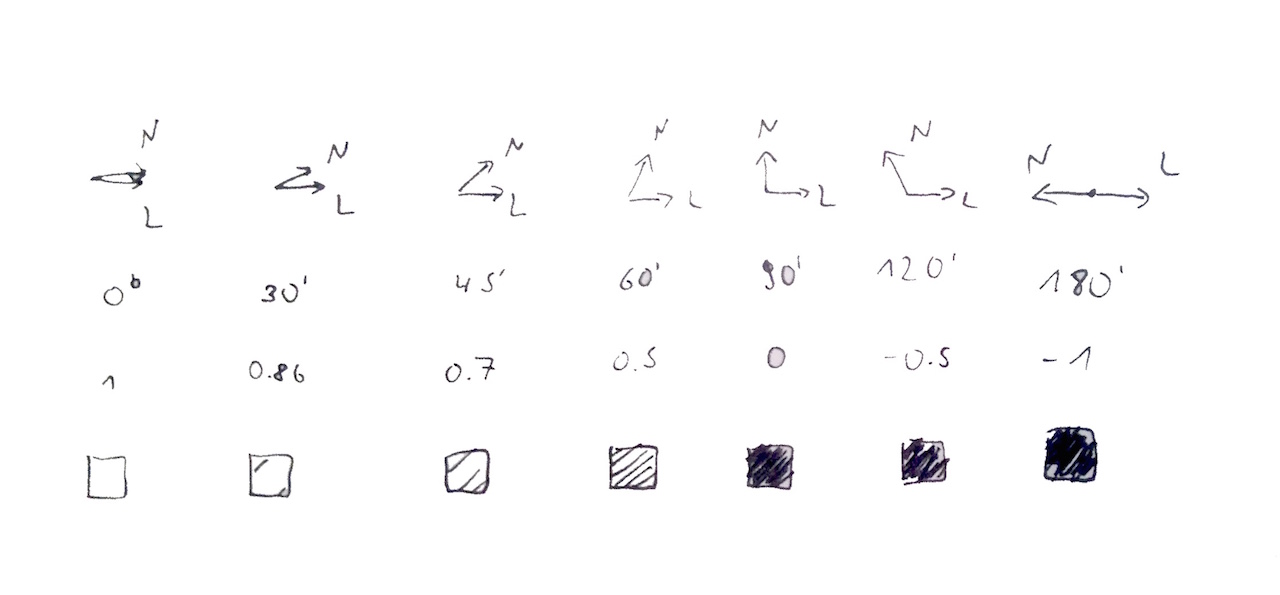

If both direction towards the light and normal point in the same direction the angle will be 0
and cos(0) = 1
therefore intensity will be the strongest. At 45' deg
we have are losing 30% of the intensity cos(PI/4) = 0.707
, dropping to zero at 90' deg
as cos(PI/2) = 0
.
We can measure the angle between two vectors using a dot productsN·L
//Id - diffuse intensity
Id = N·L
One way to calculate a dot product is to multiply lengths of the two vectors and cosine of the angle between them.
//|N| - length of the surface normal
//|L| - length of the direction towards the light
Id = N·L = |N|*|L|*cos(a)
If both the vectors are normalized (their length is 1) then our formula simplifies even more.
//assuming |N| = 1 and |L| = 1
Id = N·L = |N|*|L|*cos(a) = cos(a)
In practice we will always assume that input vectors N
and L
are normalized and use dot
function that is natively supported in GLSL shader language.
I = dot(N, L)
Here is the implementation from glsl-diffuse-lambert module that we will later use.
glsl-diffuse-lambert/index.js:
float lambertDiffuse(vec3 lightDirection, vec3 surfaceNormal) {
return max(0.0, dot(lightDirection, surfaceNormal));
}
The max(0.0, dot(L, N)
is to prevent going below zero for angles > 90'deg that would cause invalid colors on the output (we can't go blacker than black [0,0,0]
).
Transformations

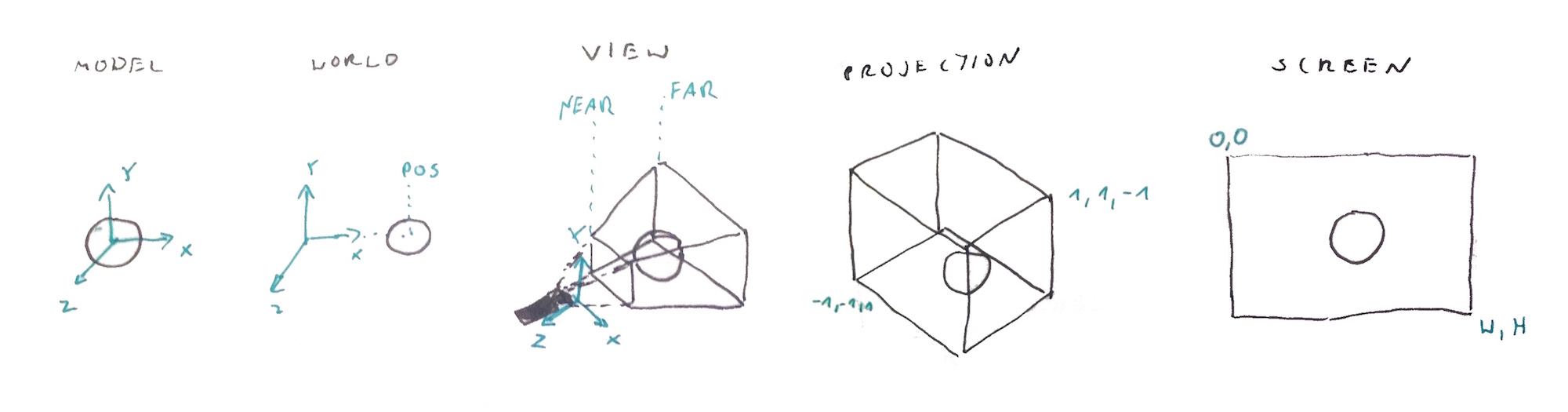

In order to calculate dot product for each pixel of our sphere we first need to transform it's vertices in a Vertex Shader. This is a good place to talk about transformation spaces as different parts of shading are calculated in different spaces depending where is your data (e.g. you might calculate specular reflections from light in eye space as they are depending on viewer's position but environmental reflections in the world space where your skybox/environment is located).
We start in the model space with our sphere vertices. Model space is relative to the model itself i.e. point [0,0,0] will be usually in the center of the mesh (for a sphere) or at the bottom (for a standing person). By encoding mesh position, rotation and scale into a model matrix we can transform the vertices into world space - it's relative position to the center of the scene. In this example the sphere is centered so there is no transformations applied. Next we use camera position and direction to build view matrix that moves the vertices into the view space - position relative to the camera point of view. Projection matrix moves the vertices into projection space. This step will cause shapes far away from the camera appear smaller if we use perspective projection. Finally WebGL will then take the projected vertices no in so called normalized device coordinates, clip them (remove stuff outside of the screen) and calculate their final position relatively to the window based on the current viewport.
To clarify and sum up:
Model Space //vertex position
↓
Model Matrix //model position, rotation, scale
↓
World Space //position in the scene
↓
View Matrix //camera position and direction
↓
View Space //eye space, camera space
↓
Projection Matrix //perspective projection, orthographic projection
↓
Projection Space //projection/ clipping space, normalized device coordinates
↓
Viewport //part of the window that we render to
↓
Screen Space //window position
Here is the vertex shader we will use to do the job:
202-lambert-diffuse/Material.vert:
//vertex position in the model space
attribute vec4 aPosition;
//vertex normal in the model space
attribute vec3 aNormal;
//current transformation matrices coming from Context
uniform mat4 uProjectionMatrix;
uniform mat4 uViewMatrix;
uniform mat4 uModelMatrix;
uniform mat3 uNormalMatrix;
//user supplied light position
uniform vec3 uLightPos;
//vertex position in the eye coordinates (view space)
varying vec3 ecPosition;
//normal in the eye coordinates (view space)
varying vec3 ecNormal;
//light position in the eye coordinates (view space)
varying vec3 ecLightPos;
void main() {
//transform vertex into the eye space
vec4 pos = uViewMatrix * uModelMatrix * aPosition;
ecPosition = pos.xyz;
ecNormal = uNormalMatrix * aNormal;
ecLightPos = vec3(uViewMatrix * uModelMatrix * vec4(uLightPos, 1.0));
//project the vertex, the rest is handled by WebGL
gl_Position = uProjectionMatrix * pos;
}
Notes:
- So why
ec
andecPosition
eye coordinates butuViewMatrix
? Conventions..vPosition
looks likevarying
- too generic,vs
looks likevertex shader
not much better. - Why we use
uViewMatrix * uModelMatrix
to getecPosition
butuNormalMatrix
to getecNormal
?uNormalMatrix
is so called normal matrix. It's an inverse transpose of the view matrix. Yay!, What? Hmm, normal vectors are not really points in space like vertex positions but directions therefore we can't transform them in the same way because while rotation make sense a translation does not (vector pointing upwards moved 3 meters to the right is still pointing upwards..). More details here OpenGL Programming Guide: Transforming Normals - where they explain the math. Don't worry, inpex
the Context computes normal matrix for you whenever the view matrix changes and updates theuNormalMatrix
uniform when necessary. - Why eye coordinates at all? Again conventions, many lighting models depend on the viewer's (camera) position and these are easier (faster) to calculate in the eye space where camera position is
[0,0,0]
.
You can read more about the math behind these matrices at Coding Labs: World, View and Projection Transformation Matrices.
Shading
Now that we are in the right transformation space and have all the data we can calculate the lambert diffuse for each pixel.
202-lambert-diffuse/Material.frag:
//require the lambert diffuse formula from a module via glslify
#pragma glslify: lambert = require(glsl-diffuse-lambert)
//vertex position, normal and light position in the eye/view space
varying vec3 ecPosition;
varying vec3 ecNormal;
varying vec3 ecLightPos;
void main() {
//normalize the normal, we do it here instead of vertex
//shader for smoother gradients
vec3 N = normalize(ecNormal);
//calculate direction towards the light
vec3 L = normalize(ecLightPos - ecPosition);
//diffuse intensity
float Id = lambert(L, N);
//surface and light color, full white
vec4 baseColor = vec4(1.0);
vec4 lightColor = vec4(1.0);
vec4 finalColor = vec4(baseColor.rgb * lightColor.rgb * Id, 1.0);
gl_FragColor = finalColor;
}
Putting it all together
The last thing we need to do is to actually create the geometry, load the shaders, and render everything on the screen.
202-lambert-diffuse/main.js:
//Import all the dependencies
var Window = require('pex-sys/Window');
var Mat4 = require('pex-math/Mat4');
var Vec3 = require('pex-math/Vec3');
var glslify = require('glslify-promise');
var createSphere = require('primitive-sphere');
//Create window - in the borwser this will:
//- create new Canvas element with width/height specified in the `settings`
//- append it to
//- get WebGL context
//- add event listeners for mouse and keyboard events
//- load all requested resources
//- call init()
//- keep calling draw() using Window.requestAnimationFrame()
Window.create({
//Window / canvas properties
settings: {
width: 1024,
height: 576
},
//Files (text, json, glsl vis glslify, images) to load before init
resources: {
vert: { glsl: glslify(__dirname + '/Material.vert') },
frag: { glsl: glslify(__dirname + '/Material.frag') }
},
//Init is called after creating WebGL context and successfuly loading all the resources
init: function() {
//pex-context/Context object - the pex's WebGL context wrapper
var ctx = this.getContext();
//Model transformation matrix
//An Array with 16 numbers initialized to an identity matrix
this.model = Mat4.create();
//Camera projection matrix
this.projection = Mat4.perspective(
Mat4.create(), //new matrix
45, //45' deg fov
this.getAspectRatio(), //window aspect ratio width/height
0.001, //near clipping plane
10.0 //far clipping plane
);
//Camera view matrix
this.view = Mat4.create();
//[0,1,5] - eye position
//[0,0,0] - target position
//[0,1,0] - camera up vector
Mat4.lookAt(this.view, [0, 1, 5], [0, 0, 0], [0, 1, 0]);
//The Context keeps a separate matrix stack for the projection,
//view and model matrix. Additionaly it will compute normal matrix
//and inverse view matrix whenever view matrix changes
ctx.setProjectionMatrix(this.projection);
ctx.setViewMatrix(this.view);
ctx.setModelMatrix(this.model);
//Get reference to all loaded resources
var res = this.getResources();
//Each resource of type `glsl` will be replace by string with the loaded GLSL code
//We can use that code to create a WebGL Program object
this.program = ctx.createProgram(res.vert, res.frag);
//Create sphere geometry - an object with positions, normals and cells/faces
var g = createSphere();
//Define mesh attribute layout
//ATTRIB_POSITION and ATTRIB_NORMAL are slot numbers
//matching attributes in the shader aPosition and aNormal
var attributes = [
{ data: g.positions, location: ctx.ATTRIB_POSITION },
{ data: g.normals, location: ctx.ATTRIB_NORMAL }
];
//Define vertices data
var indices = { data: g.cells };
//Create mesh to be rendered as a list of TRIANGLEs
this.mesh = ctx.createMesh(attributes, indices, ctx.TRIANGLES);
},
//This function is called as close as possible to 60fps via requestAnimationFrame
draw: function() {
var ctx = this.getContext();
//Set gl clear color to dark grey
ctx.setClearColor(0.2, 0.2, 0.2, 1);
//Clear the color and depth buffers
ctx.clear(ctx.COLOR_BIT | ctx.DEPTH_BIT);
//Enable depth testing
ctx.setDepthTest(true);
//Activate our GLSL program
ctx.bindProgram(this.program);
//Set the light's position uniform
//There is no need to set matrix uniforms like uProjectionMatrix as
//these are handled by the context. List of all handled uniforms is
//in pex-context/ProgramUniform.js
this.program.setUniform('uLightPos', [10, 10, 10])
//Activate the sphere mesh
ctx.bindMesh(this.mesh);
//Draw the currently active mesh (sphere in this example)
ctx.drawMesh();
}
})
Running the code
Fire the following command to open this example in the browser:
beefy 202-lambert-diffuse/main.js --open --live -- -i plask -g glslify-promise/transform
203-gamma
PBR looks good because it's trying to avoid errors and approximations that accumulate across different rendering stages (color sampling, lighting / shading, blending etc). One of these assumptions is that that half the value 0.5 equals half the brightness. Unfortunately this is not how things work. Most screen we are using nowadays follow so called gamma curve that maps the input value to the brightness of a pixel in a non linear way.

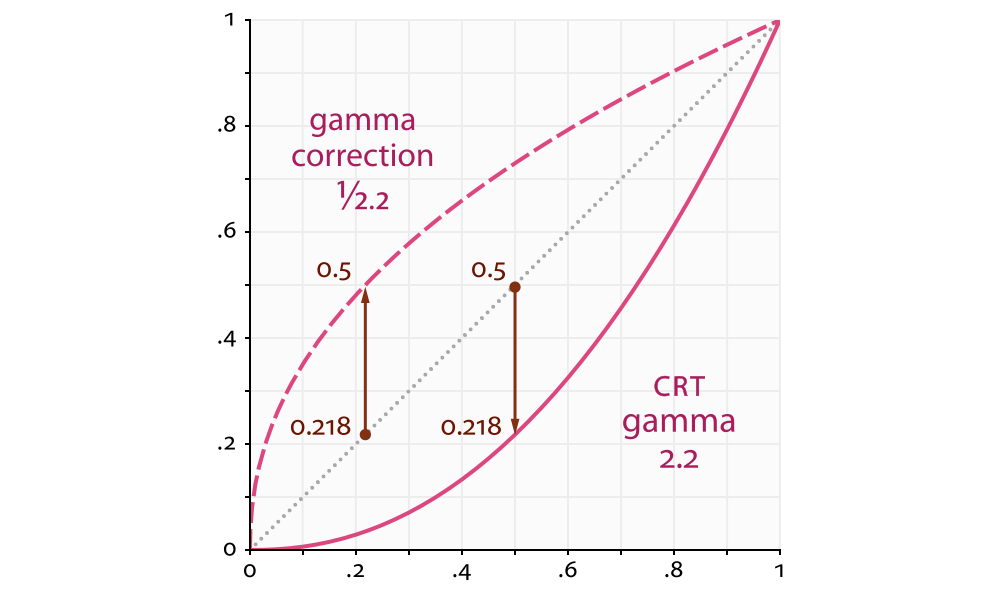

Source: Wikipedia: Gamma_correction
Because of historical reasons (cathode ray tube - CRT screens) whatever our application produces will be converted (made darker) by rising it to the power of 2.2. That value 2.2
is called gamma. This fact was often neglected to the medicare results and plastic look of older games.
At the same time most commonly used graphics formats like JPEG encode their colors using sRGB curve that negates this effect. I.e. They save values brighter that they are in reality (captured by the camera sensor). This also helps to keep more details (by using more bits) in the darker areas where human eyes are more sensitive. That sRGB curve negating the CRT gamma curve was the reason it all kind of worked so far, just the math was wrong so it was harder to achieve realistic (expected) results.
We will call these brighter color values gamma space and the unadjusted values linear space. You ALWAYS want to do your lighting calculations in the latter. Therefore whenever we get some color from a texture (unless it's linear data like HDR images) or another sRGB encoded value we need to convert it into linear space by rising to the power of 2.2 (0.45) and then after we are done we need to move it back to the gamma space by rising it to the power of 1.2/2.2. Monitor will then apply it's 2.2 curve and it all will look beautiful. Filmic Games: Linear-Space Lighting (i.e. Gamma) (2010) has great illustrations for that.
To sum up:
gamma space //input colors
↓
pow(x, 2.2) //(if in sRGB/gamma space)
↓
linear space //do the lighting and blending math here
↓
pow(x, 1.0/2.2)
↓
gamma space //colors for the screen
If you still feel confused (I would) please read more on the topic. Remember: Gamma / linear lighting is the "Number one trick to improve your rendering quality in no time!".
More reading:
- GPU Gems 3: The Importance of Being Linear (2008)
- Coding Labs: Gamma and Linear Spaces
- Gamasutra: Gamma-Correct Lighting (2010)
click to see the live version in a separate window
203-gamma/Material.frag:
The vertex shader for is the same as for lambert diffuse. In the fragment shader we add the following lines:
//import gamma related functions
//glsl-gamma module exports two functions that we can import separately
#pragma glslify: toLinear = require(glsl-gamma/in)
#pragma glslify: toGamma = require(glsl-gamma/out)
Now we can use them to obtain the correct color values to work with.
//surface and light color, full white
vec4 baseColor = toLinear(vec4(1.0)); //NEW
vec4 lightColor = toLinear(vec4(1.0)); //NEW
//lighting in the linear space
vec4 finalColor = vec4(baseColor.rgb * lightColor.rgb * Id, 1.0);
gl_FragColor = toGamma(finalColor); //NEW
}
Note: using toLinear(vec4(1.0))
won't change much because pow(1, 2.2)
is still 1
but this will become super important when we work with different colors and textures data.
Here is how toLinear
and toGamma
are implemented:
glsl-gamma/in:
const float gamma = 2.2;
vec3 toLinear(vec3 v) {
return pow(v, vec3(gamma));
}
vec4 toLinear(vec4 v) {
return vec4(toLinear(v.rgb), v.a);
}
glsl-gamma/out:
const float gamma = 2.2;
vec3 toGamma(vec3 v) {
return pow(v, vec3(1.0 / gamma));
}
vec4 toGamma(vec4 v) {
return vec4(toGamma(v.rgb), v.a);
}
The final code is in 203-gamma/Material.frag
To run the example:
beefy 203-gamma/main.js --open --live -- -i plask -g glslify-promise/transform

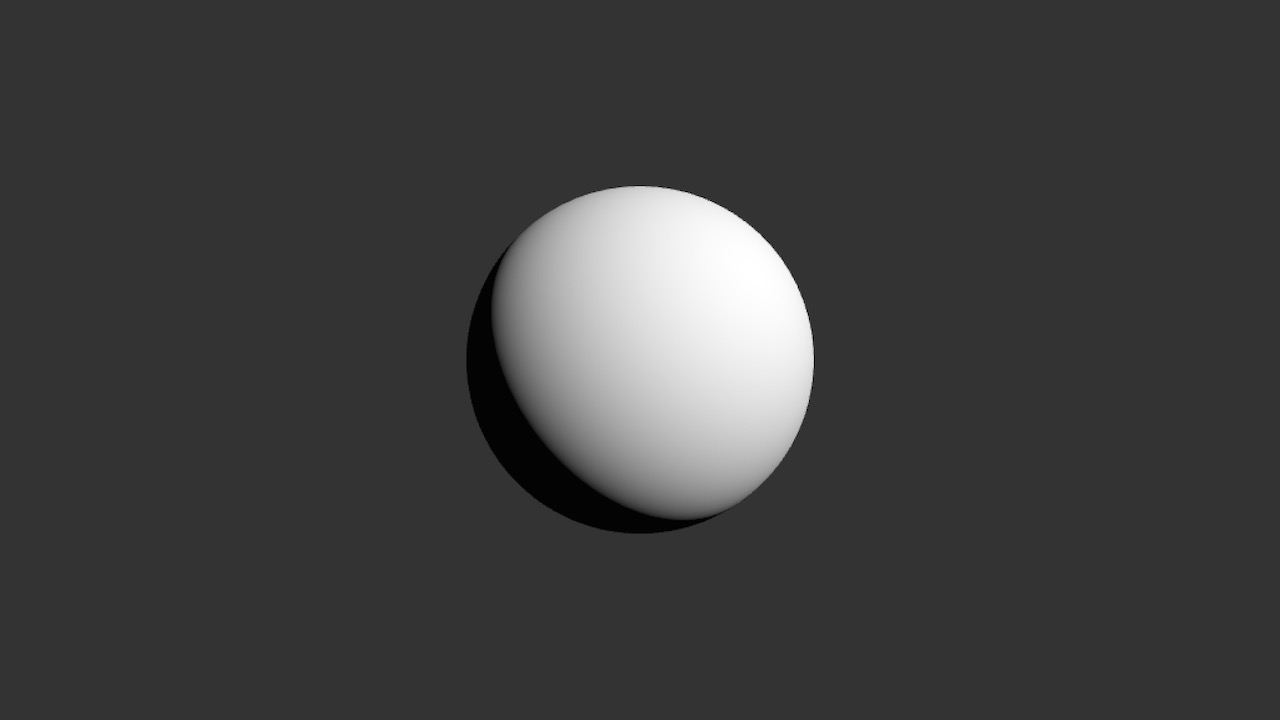

The final result looks pretty much like an object I've seen somewhere before... as Vincent Scheib is pointing on his Beautiful Pixels blog.
204-gamma-color
I know, I know. You are still not convinced. This video will change everything though:

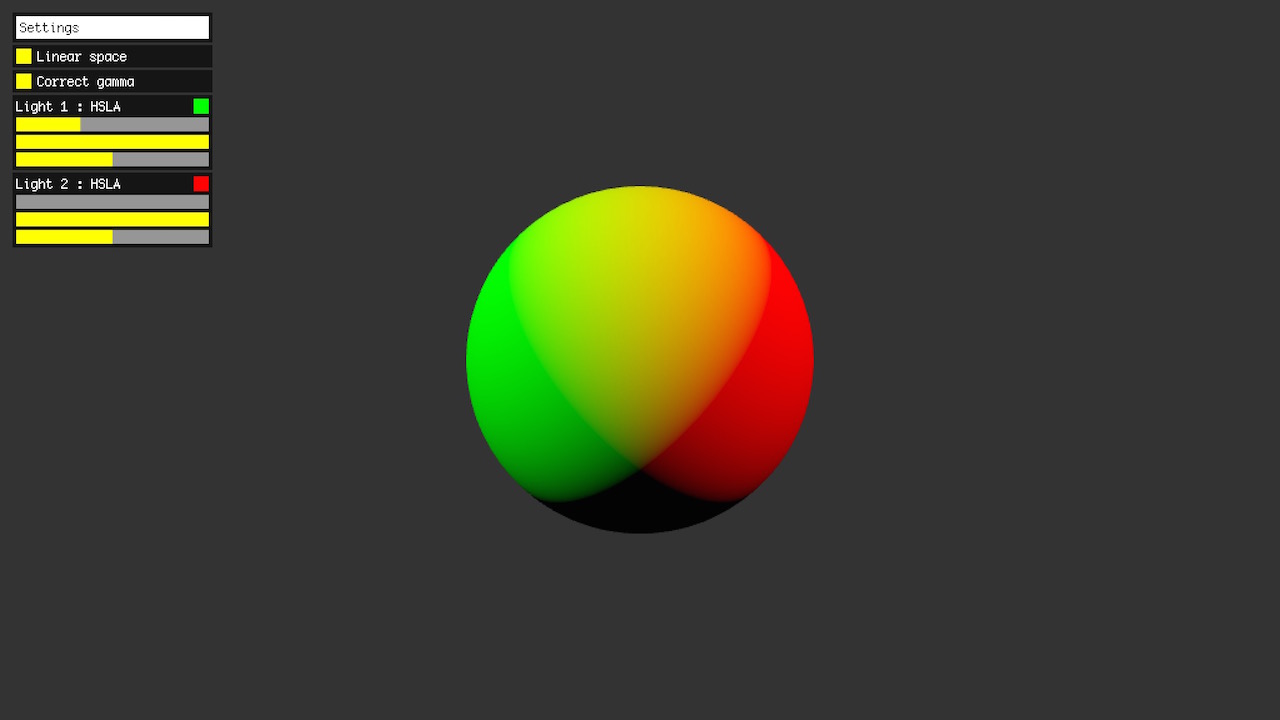

I made a separate example with two lights for you to play with and see the results yourself:
click to see the live version in a separate window
To run the example:
beefy 204-gamma-color/main.js --open --live -- -i plask -g glslify-promise/transform

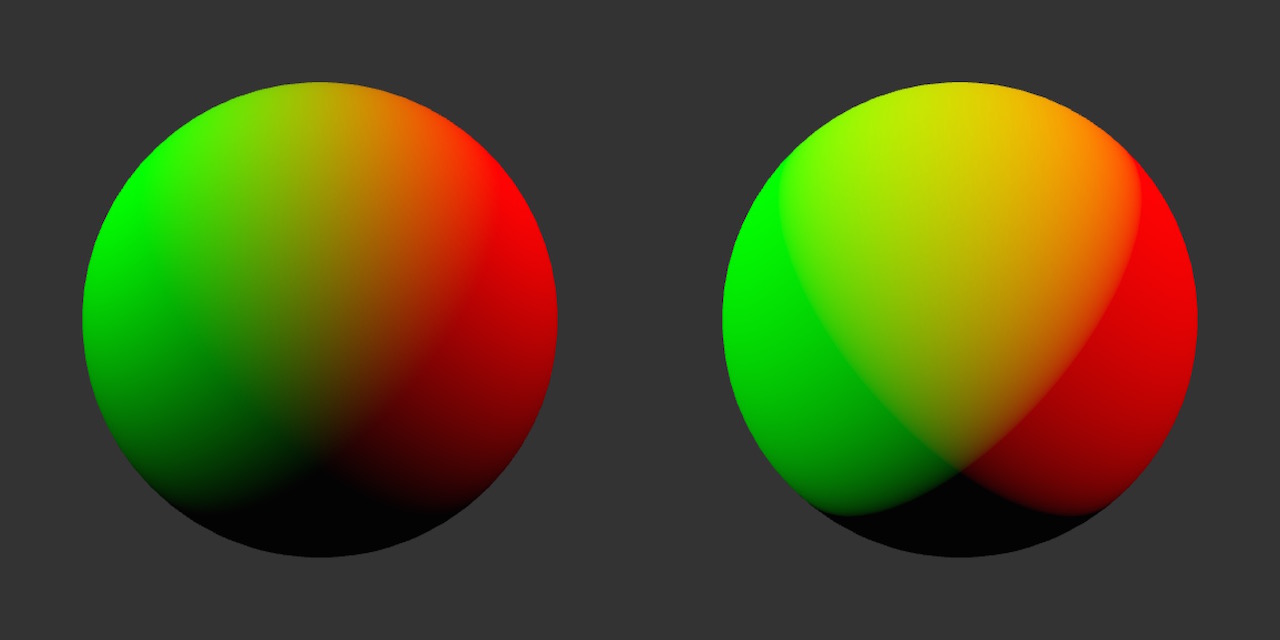

Try turning on/off the conversion to linear and gamma space to see the difference. Do you see that ugly brown on the left (uncorrected) side?
205-gamma-texture
click to see the live version in a separate window
Remember when I was talking about sRGB curves and textures? When using texture with sRGB encoded colors we need to bring them to the linear space as well:
vec4 baseColor = toLinear(texture2D(uAlbedoTex, vTexCoord0));
But first we need to create a texture in pex
:
//define path to the assets directory, here it's above (..) the example
//folder so all examples can share the assets. `__dirname` is a nodejs
//built-in variable pointing to the folder where the js script lives,
//We need that to make it work in Plask.
var ASSETS_DIR = isBrowser ? '../assets' : __dirname + '/../assets';
Then we declare the image resource to be loaded before init. texture
is just a name we will use to refer to it later.
resources: {
texture: { image: ASSETS_DIR + '/textures/Pink_tile_pxr128.jpg'}
},
Then in init()
we can create the texture:
this.texture = ctx.createTexture2D(
res.texture,
res.texture.width,
res.texture.height,
{ repeat: true }
);
And use it with the shader in draw()
:
ctx.bindTexture(this.texture, 0);
this.program.setUniform('uAlbedoTex', 0);
Why uAlbedoTex
? Albedo is the base color reflected by the surface. In PBR it's preferred to the diffuseColor
name as that would imply that lighting information is included in the texture data (e.g. imagine bricks with shadows in the cracks between them). Later we might use baseColor
name which will be albedo color for diffuse materials but specular color for metals.
To run the example:
beefy 205-gamma-texture/main.js --open --live -- -i plask -g glslify-promise/transform

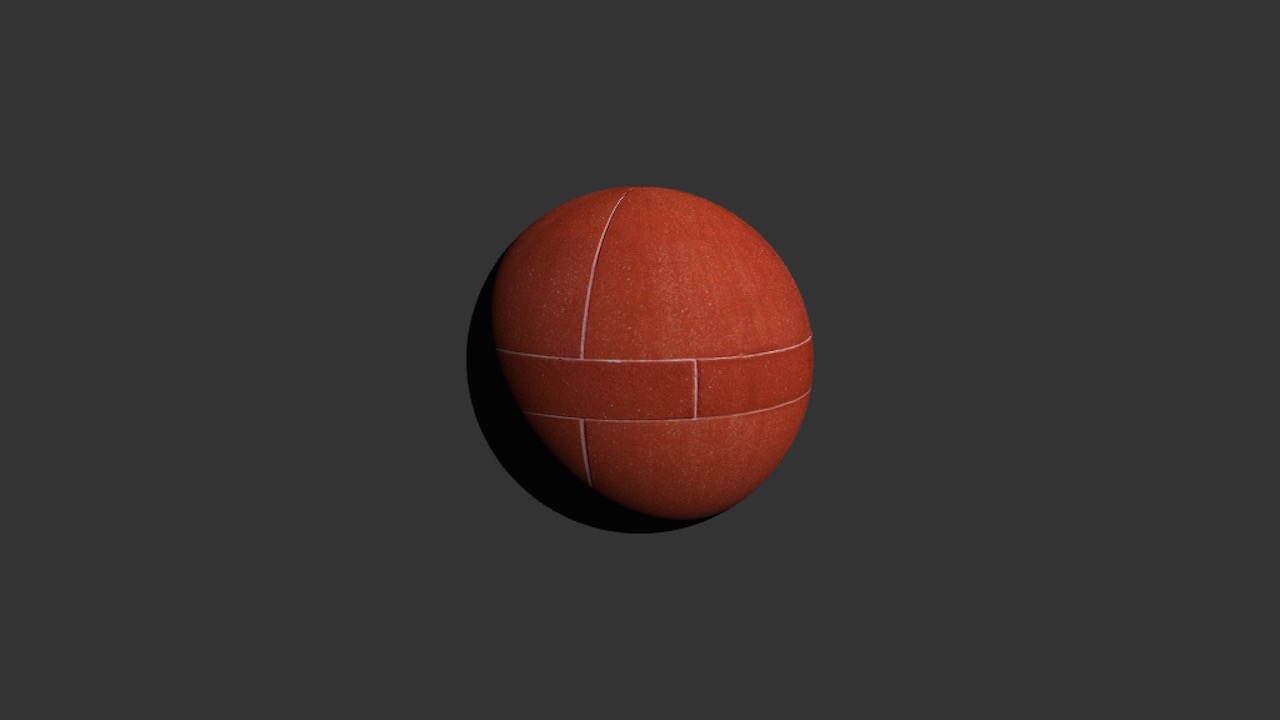

The brick texture comes from Pixar One Twenty Eight - a collection of classic textures from Pixar. Only some of them are suitable for physically based rendering as many include lighting / shadows baked together with color but you can find some nice stuff there:
206-gamma-ext-srgb
Decoding texture colors into linear space is a common operation therefore the EXT_sRGB extension was created. Using this extension textures with sRGB data can be decoded for us on the fly even before sampling. As explained in The Importance of Being Linear this is preferred method:
The automatic sRGB corrections are free and are preferred to performing the corrections manually in a shader after each texture acces, because each pow instruction is scalar and expanded to two instructions. Also, manual correction happens after filtering, which is incorrectly performed in a nonlinear space.
I won't use it for now as it's not supported everywhere and I want to avoid automagic.
To enable this extension in WebGL you need to call:
var ext = gl.getExtension('EXT_sRGB')
Then when uploading texture data to the GPU we will use ext.SRGB_EXT
instead of gl.RGB
.
gl.texImage2D(gl.TEXTURE_2D, 0, ext.SRGB_EXT, gl.UNSIGNED_BYTE, ext.SRGB_EXT, data);
In pex
we specify sRGB data when creating the texture. Context will check for the EXT_sRGB
extension and enable it for us when available./
this.texture = ctx.createTexture2D(
res.texture,
res.texture.width,
res.texture.height,
{ repeat: true, format: ctx.SRGB }
);
Then in our shader we can now skip toLinear
call for the texture data
//sample color as usual, the RGB values
//will be converted to linear space for you
vec4 baseColor = texture2D(uAlbedoTex, vTexCoord0 * vec2(3.0, 2.0));
vec4 finalColor = vec4(baseColor.rgb * diffuse, 1.0);
//we still need to bring it back to the gamma
//color space as we don't have sRGB aware render buffer here
gl_FragColor = toGamma(finalColor);
To run the example:
beefy 206-gamma-ext-srgb/main.js --open --live -- -i plask -g glslify-promise/transform
According to WebGL ReportEXT_sRGB
is supported in:
- Chrome 43+ on OSX
- Firefox 39+ on OSX
- Webkit Nighly r186719 on OSX
- Safari 8.0.7 on OSX
Additionally
- it doesn't work in Plask v3 (due to images being uploaded to the GPU always as RGB)
- EXT_sRGB will be in core WebGL 2.0
If you don't have EXT_sRGB enabled or supported you will get brighter image than expected due to applying gamma to non-linear data (still in gamma space).
click to see the live version in a separate window
Uff, that's the end of Part 2. Next time we will talk about hight dynamic range (HDR) which is intro to Image Based Lighting ("the number 2" trick in PBR).
Comments, feedback and contributing
Please leave any comments below, on twitter @marcinignac or via positing issues or pull request on Github for this page pragmatic-pbr/200-setup-and-gamma.md.
